HTAC Burners
The Revolution is here
High Temperature Air Combustion
HTAC® Burner Technology
High-efficiency industrial combustion systems engineered for ceramic kilns, steel furnaces, glass melting, and heavy industry.
Fuel Savings: 20-30% reduction in natural gas consumption through waste heat recovery and combustion air preheating
Operating Cost Reduction: Annual energy savings of €200,000-€500,000 for medium-scale industrial furnaces (based on 6,000 operating hours/year)
CO₂ Emission Reduction: Proportional to fuel savings - up to 1,500 tons CO₂/year for typical ceramic tunnel kiln applications
NOx Emission Control: <100 mg/Nm³ (at 3% O₂, dry basis) compliant with IED 2010/75/EU directive - 50-70% lower than conventional atmospheric burners
Hydrogen-Ready Design: Compatible with H₂/CH₄ blends up to 100% hydrogen for decarbonization roadmap compliance (EN 676 certified)
High Temperature
Air Combustion

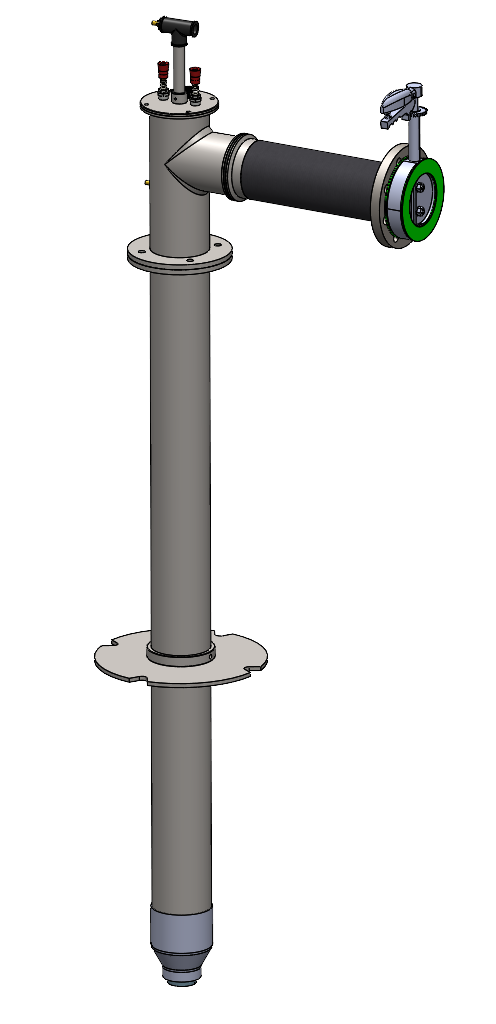

Air-NG burner suitable to be adopted in kiln for bricks production and having the following features:
1. Suitable to be operated with approximately 500°C
air temperature (at burner inlet)
2. Suitable to be operated with Lambda up to 4.0
(L= 21%O2/ (21%O2-meas.%O2)
3. Firing rate maximum 150 kW approx
4. Low NOx generation
5. Stable flame detection via electrode
(for firing zones where it is needed)
6. Suitable to be used also with cold air during kiln
start up
7. Hydrogen ready
